Have you noticed your car dipping forward when you hit the brakes, or bouncing like a trampoline after a minor pothole? If so, your vehicle’s struts might be crying out for retirement.
As a fundamental part of your vehicle’s suspension system, struts do much more than ensure a smooth ride—they are critical for steering, braking, and overall road safety. In this comprehensive guide, we will break down exactly why struts matter, when you need to replace them, and a step-by-step guide on how to tackle the replacement yourself or know what to expect at the shop.
1. What Are Automobile Struts and Why Do They Matter?
Before diving into replacement procedures, we must understand what a strut actually is. Many drivers confuse shocks and struts, using the terms interchangeably. However, they are distinct components.
Shocks vs. Struts: The Core Difference
Shock Absorbers (Shocks): These are independent components that merely absorb the kinetic energy of road bumps. They do not support the vehicle’s weight.
Struts: A strut is a structural powerhouse. It integrates the shock absorber, a coil spring, and a top mount into one cohesive unit.
Because struts are structural elements of the chassis, they directly affect your vehicle’s alignment, steering linkage, and weight distribution.
Why Struts Are Critical to Vehicle Safety
Struts are not just about comfort; they keep your tires firmly planted on the pavement. When struts degrade, your vehicle loses optimal contact with the road. Consequently, this compromises your ability to accelerate, steer precisely, and stop efficiently. In fact, worn struts can increase your braking distance by up to 11.3%, which can be the difference between a near-miss and a fender bender.

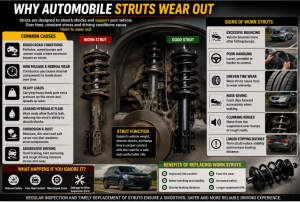

2. Why Do Struts Fail? (The Root Causes)
Like any mechanical component subjected to constant friction and weight, struts have a finite lifespan. Understanding why they fail can help you prolong their existence.
Constant Internal Friction
Inside every strut, a piston moves through hydraulic fluid to dampen spring movement. Over time, this constant motion generates heat and degrades the fluid. Eventually, the internal seals wear out, allowing the fluid to bypass the piston or leak out entirely.
Environmental Road Hazards
Your suspension bears the brunt of external elements. Road salt, mud, deep potholes, and speed bumps accelerate the degradation of the rubber boots that protect the strut piston. Once dirt and grit penetrate these seals, they score the metal shaft, causing rapid fluid loss and structural failure.
3. When to Replace Struts: Signs, Symptoms, and Mileage
How do you know it is time to swap out your old suspension? Fortunately, your car will give you several clear warnings when its struts are failing.
Top 5 Symptoms of Bad Struts
The “Boomerang” Bounce: If your car continues to bounce two or more times after hitting a bump, your struts are no longer dampening the spring’s energy.
Front-End Diving and Rear-End Squatting: When you apply the brakes, does the nose of your car pitch downward dramatically? Conversely, does the rear squat heavily during acceleration? These are classic signs of fluid loss within the strut housing.
Visible Oil Leaks: Inspect your wheel wells. If you notice a film of wet, dark oil coating the body of the strut, the internal seals have ruptured.
“Cupping” Tire Wear: When a strut fails, the tire bounces rapidly down the road. This erratic movement creates smooth, scooped-out dips (cupping) across the tire tread, ruining your tires prematurely.
Audible Clunking or Knocking: If you hear a metallic clunking sound when driving over bumps or turning the steering wheel, the rubber bushings or the upper strut mount bearing have likely disintegrated.
The Golden Mileage Rule
Most manufacturers recommend inspecting your suspension system every 12,000 miles. On average, you can expect original equipment manufacturer (OEM) struts to last between 50,000 and 80,000 miles. However, if you frequently drive on rough dirt roads or carry heavy cargo, you may need to replace them much sooner.
4. How to Replace Automobile Struts: A Step-by-Step DIY Guide
Replacing your own struts can save you hundreds of dollars in labor costs. While the process requires patience and mechanical aptitude, a DIY mechanic can absolutely accomplish it with the right tools.
⚠️ SAFETY WARNING: Strut coil springs store massive amounts of kinetic energy. If you are using a manual spring compressor to transfer an old spring to a new strut, exercise extreme caution. For beginners, we highly recommend purchasing “loaded struts” (Quick-Struts), which come pre-assembled with a new spring and mount, eliminating the dangerous step of compressing the spring.
Required Tools and Materials

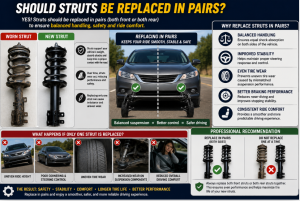

New strut assemblies (always replace them in pairs—left and right)
Hydraulic jack and heavy-duty jack stands
Wheel chocks
Metric socket set and open-ended wrenches
Torque wrench
Penetrating oil (e.g., WD-40 Specialist or PB Blaster)
Breaker bar
Step 1: Vehicle Preparation and Safety
First, park your vehicle on a flat, level concrete surface. Engage the parking brake and place wheel chocks behind the rear tires. Next, use a breaker bar to loosen the lug nuts on the front wheels by a quarter-turn, but do not remove them yet. Lift the vehicle using your hydraulic jack, and secure it firmly on jack stands. Never rely solely on a hydraulic jack to hold a vehicle up. Finally, remove the lug nuts and pull the wheels away.
Step 2: Clear Obstructions and Apply Penetrating Oil
Suspension bolts are notorious for rusting and seizing. Therefore, spray all mounting bolts generously with penetrating oil and let it sit for 10 to 15 minutes. While the oil works, unclip any brake lines, ABS sensor wires, or sway bar end links that are attached directly to the strut body.
Step 3: Disconnect the Strut from the Steering Knuckle
Locate the two large bolts at the bottom of the strut that secure it to the steering knuckle. Hold the nut with a wrench while using your socket and breaker bar to loosen the bolt. Once you remove these bolts, the steering knuckle will pull free. Be careful not to let the knuckle drop forward violently, as this can overextend and damage the brake lines or CV axle joints. Support it with a bungee cord if necessary.
Step 4: Unbolt the Upper Strut Mount
Move to the engine bay. Under the hood, you will find three or four small nuts securing the top of the strut to the shock tower. While holding the bottom of the strut assembly with one hand to prevent it from falling, use your socket wrench to remove these upper nuts. Carefully lower the old strut assembly out of the wheel well.
Step 5: Install the New Strut Assembly
Lift your new, pre-assembled loaded strut into the wheel well, aligning the upper mounting studs with the holes in the shock tower. Thread the upper nuts on by hand to ensure the unit stays in place. Next, guide the lower portion of the strut back onto the steering knuckle. Reinsert the large lower bolts and thread their nuts on.
Step 6: Torque to Factory Specifications
You must never guess the tightness of suspension components. Look up your vehicle’s exact torque specifications in a service manual. First, tighten the lower steering knuckle bolts to specification using your torque wrench. Next, torque the upper strut tower nuts in the engine bay. Reattach the brake lines, ABS wires, and sway bar links.
Step 7: Final Reassembly
Reinstall the wheel and tighten the lug nuts in a star pattern until they are snug. Lower the vehicle carefully back to the ground. Once the car is resting on its own weight, use your torque wrench to tighten the wheel lug nuts fully to specification. Repeat the exact same process on the opposite side of the vehicle.
5. Critical Post-Replacement Steps
Your job is not quite done after lowering the vehicle. To protect your investment and ensure maximum safety, you must complete two final tasks.
Get a Professional Wheel Alignment
Whenever you disconnect a strut from the steering knuckle, you alter your vehicle’s camber and toe alignment angles. If you skip a professional alignment, your car will likely pull to one side, and your tires will wear out completely within a few thousand miles. Schedule an alignment immediately following installation.
The Test Drive Checklist
Take your vehicle on a short test drive through a quiet residential area. Keep your radio off and listen carefully.
Do you hear any strange rattling or popping? (Check for loose upper mount nuts).
Does the steering feel responsive and center itself properly?
Does the vehicle track straight when you release the steering wheel on a flat road?
6. Cost Analysis: DIY vs. Professional Mechanic
If you are on the fence about tackling this project yourself, evaluating the financial breakdown can help you decide.
| Expense Category | DIY Cost (Estimated) | Professional Shop Cost (Estimated) |
| Parts (Pair of Front Struts) | $150 – $300 | $250 – $450 (with shop markup) |
| Labor Fees | $0 | $300 – $600 |
| Wheel Alignment | $80 – $120 | $80 – $120 |
| Total Estimated Investment | $230 – $420 | $630 – $1,170 |
Ultimately, choosing the DIY path can save you anywhere from $400 to $750. However, if you lack the necessary tools or feel uncomfortable working around heavy mechanical components, paying a certified professional is well worth the peace of mind.
Conclusion
Automobile struts are critical pillars of your vehicle’s safety, handling, and ride comfort. By keeping a watchful eye out for fluid leaks, erratic bouncing, and uneven tire wear, you can catch failing struts before they compromise your safety on the road. Whether you choose to install loaded struts in your own garage or hand the keys to a trusted mechanic, timely strut replacement keeps your vehicle driving smoothly, predictably, and safely for miles to come.
